Antea Group has been awarded for performing the studies for the existing water treatment plant of N’Djili and the rehabilitation and construction of some drinking water tanks.

The development objectives of this project are:

• To sustainably increase the access to drinking water in three main target cities: Kinshasa, Lubumbashi, and Matadi, as well as the Kindu city
• To improve the efficiency of REGIDESO by reducing water losses and increasing its productivity with the aim to improve its financial situation.

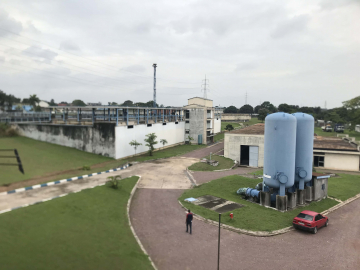

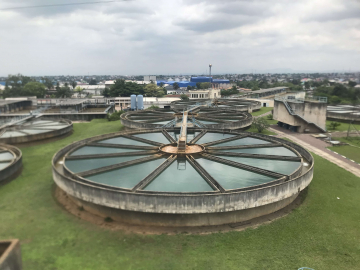

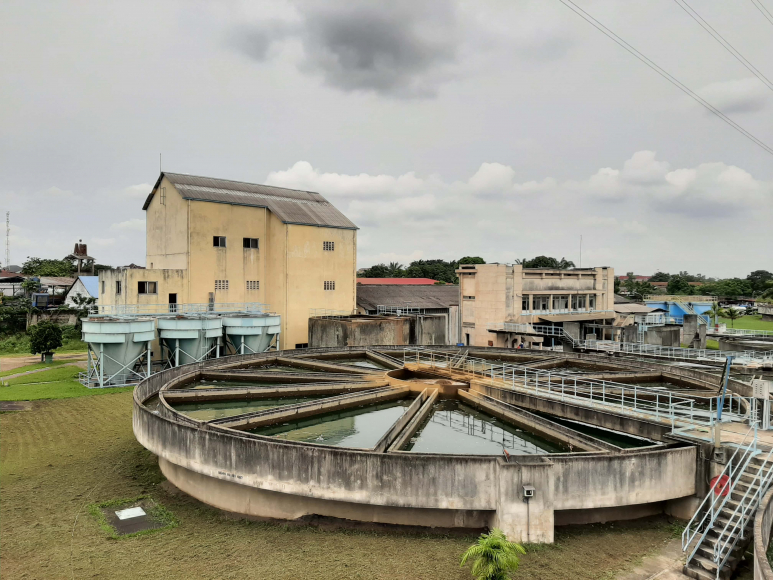

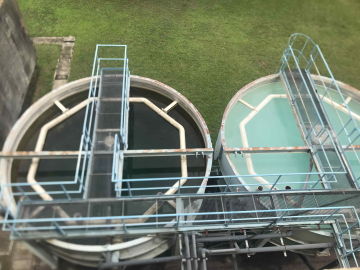

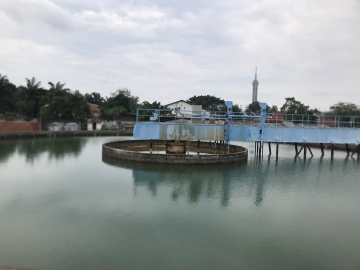

Under this context, our mission concerns the assessment for the rehabilitation of the N’Djili water treatment plant, connected networks and storage. Furthermore, three drinking storage tanks will be built in Gombele, Djelo Binza, and Kisenso.

Phase 1: Detailed and complete diagnosis of structures, installations, and equipments which includes: collection & analysis of available documents and inspection of existing structures.

The diagnosis includes :

• All infrastructures and equipments (hydraulic, civil, electrical, electromecanical, etc.) for modules 1, 2, and 3 of the N’djili station (110,000m³/day each module).
• Networks downstream the Djelo Benza drinking water storage (secondary).
• Existing drinking water storage in Gombele (1000m³)
• Secondary and tertiary networks downstream the Kisenso drinking water storage.

Phase 2: Detailed design studies for the following infrastructures:

• Rehabilitation of the three modules of the N’djili water treatment station (110,000m³/day, each module)
• Rehabilitation of the existing Gombele reservoir (1000m³) (with access road and pumping station);
• Rehabilitation of the existing networks (Kisenso and Djelo Benza);
• Construction of a new semi-underground reservoir in Kisenso (7000m³) and pumping station;
• Construction of a new water tower in Kisenso (700m³);
• Construction of a new semi-underground reservoir at Djelo Binza (5000m³);
• Construction of a new water tower in Djelo Binza (750m³)

This phase of the project includes topographic surveys, geotechnical surveys, energy supply to the infrastructures, detailed design, costs evaluation of the works, allotment of the works and provisional works schedule.

Phase 3: Tenders documents for the works: rehabilitation of the existing infrastructures and construction of the new drinking water storages.

• IGIP
• VSI Afrique
